A2L RECOVERY CYLINDERS

Product Description

SAFETY IS OUR #1 PRIORITY

Easily store and transport mildly flammable A2L refrigerant gases.

FEATURES:

• 2-Way Y-Valve for A2L Refrigerants
• 1/4 SAE Flare Fitting w/Left Hand Threads
• Powder coated cylinder for high gloss, durable finish
• Y-valve for liquid/vapor
• 3/4” NPT opening accepts 80% fill float switch shut-off device
• Collar design for ease of handling
• Reusable and conforms to DOT-4BA400 specifications and ARI guidelines
• Australian approved and TC Canadian (CAN/CSA-B339-02) approved
• Pre-charged cylinder provides a clean, dry interior
• Storage and transport

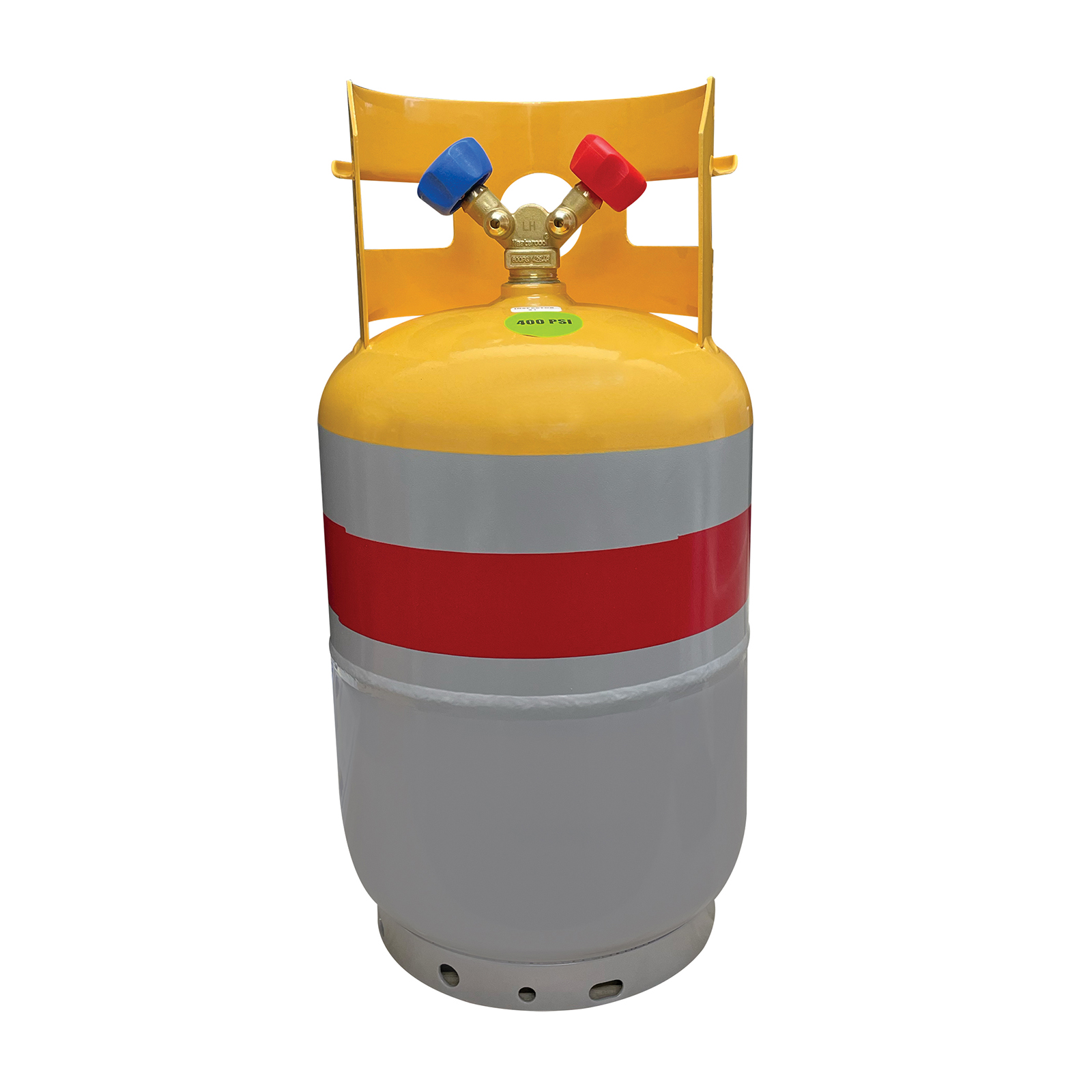

62010-A2L: 30 lb. Refrigerant Recovery Tank without Float Switch and 1/4” FL-M (LH) Connection
62010-60PKA2L: 60 pack (1 pallet) – 30 lb. Refrigerant Recovery Tank without Float Switch and 1/4” FL-M (LH) Connection

SPECIFICATIONS:

• Size (w x h): 9.125″ x 17.52″
• Connection: 1/4″ FL-M (LH)
• Tare Weight: 17.99 lb
• Standard Specification: DOT-4BA400 / CAN/CSA-B339-02
• Nominal Water Capacity: >26.2 lb / 11.9 L
• Service Pressure: 400 PSI / 2.7 MPa
• Tank Test Pressure: 800 PSI / 5.5 MPa
• Relief Valve Pressure: 600 PSI / 4.1 MPa
• Air Tightness Pressure: 400 PSI / 2.7 MPa
• Body Material: HP295

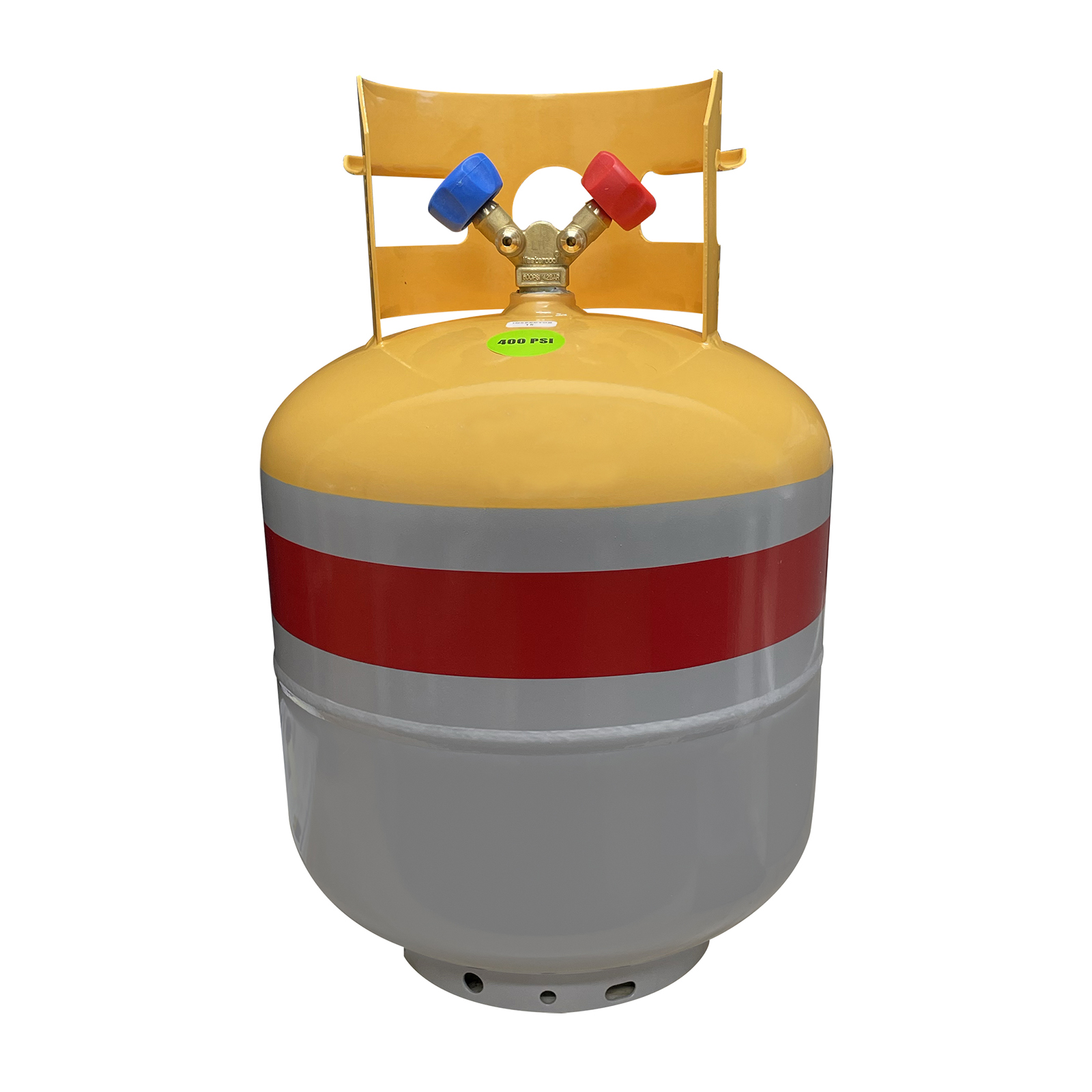

63010-A2L: 50 lb. Refrigerant Recovery Tank without Float Switch and 1/4” FL-M (LH) Connection
63010-24PKA2L: 24 pack (1 pallet) – 50 lb. Refrigerant Recovery Tank without Float Switch and 1/4” FL-M (LH) Connection

SPECIFICATIONS:

• Size (w x h): 12.25″ x 18.78″
• Connection: 1/4″ FL-M (LH)
• Tare Weight: 28.71 lb
• Standard Specification: DOT-4BA400 / CAN/CSA-B339-02
• Nominal Water Capacity: >47.7 lb / 21.6 L
• Service Pressure: 400 PSI / 2.7 MPa
• Tank Test Pressure: 800 PSI / 5.5 MPa
• Relief Valve Pressure: 600 PSI / 4.1 MPa
• Air Tightness Pressure: 400 PSI / 2.7 MPa
• Body Material: HP325 or HP345

CONVERSION FITTING FOR DOT TANKS AND DISPOSABLE REFRIGERANT TANKS

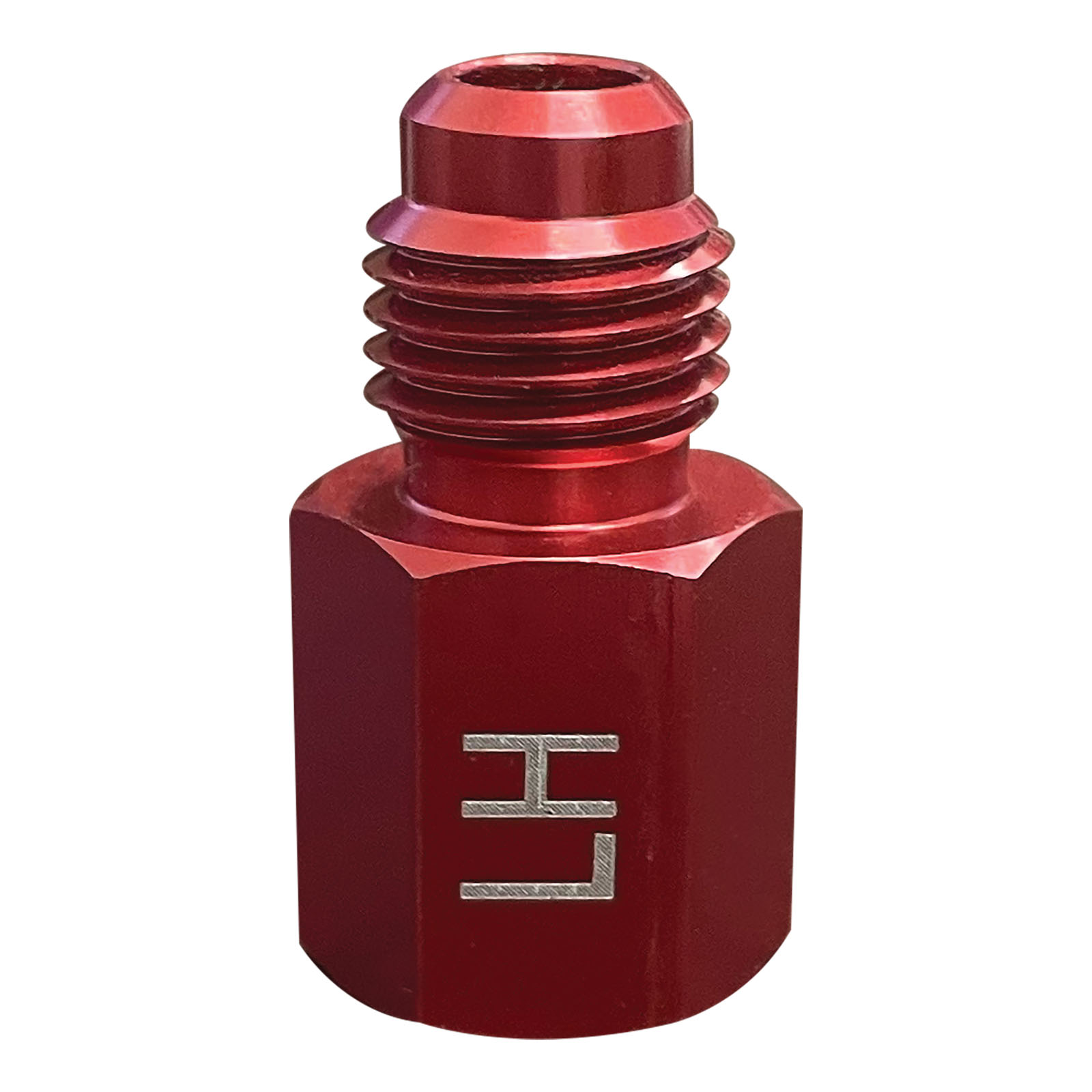

90417: A2L Adapter 1/4 LH FFL X 1/4 RH MFL
90417-10: A2L Adapter 1/4 LH FFL X 1/4 RH MFL (10 pieces)
90417-100: A2L Adapter 1/4 LH FFL X 1/4 RH MFL (100 pieces)
