BLACK SERIES MINI-FOLD R1234yf COMPACT 2-WAY ALUMINUM MANIFOLD

Product Description

COMPACT MANIFOLD WITH FRONT MOUNTED HOSE HOLDERS ALLOWS FOR PRECISE CALCULATIONS IN THE PALM OF YOUR HAND

Mastercool’s Black Series Compact 2-Way Digital Manifold Gauge Set effortlessly performs pressure and temperature calculations and displays them on a large blue backlit LCD display. Constructed of the finest materials and machined with precision to the highest quality standards this compact manifold provides automatic shut-off, units conversion, over range alarm, max and min values and refrigerants selection providing for a powerful tool for the hard-working technician.

FEATURES:

• Compact black anodized aluminum block with matte chrome fittings offer an extremely portable solution to fit the needs of every busy technician
• Easily perform pressure/temperature calculations for up to 91 different refrigerants including R134a, R410a and R22 refrigerants
• Unit conversion between MPa, kPa, bar, psi, kg/cm2, inHg
• Large 4-digit “blue” backlit LCD display provides vibrant readings in even the darkest of environments
• Displays alarm indication when over range, celcius or fahrenheit designation and low battery warning directly on the LCD screen
• Large sight glass for quick visual refrigerant checks
• Easy to grip knobs

INCLUDED REFIGERANTS:
R12, R1234yf, R1234ze, R124, R125, R134a, R141B, R142B, R413A, R152A, R21, R218, R22, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R406A, R407A, R407B, R407C, R407D, R407E, R407F, R408A, R409A, R409B, R410A, R410B, R412A, R413A, R414A, R414B, R415B, R416A, R417A, R419A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R423A, R427A, R437A, R438A, R441A, R442A, R443A, R444A, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R454C, R455A, R470B, R471A, R472A, R50, R500, R502, R503, R504, R507A, R508A, R508B, R509A, R513A, R515B, R600, R600a, R601, R601a, R740, R744

SPECIFICATIONS:

• Pressure Range:
  Low Pressure Range: -14.5 – 500 psi (-0.1 – 3.4 MPa)
  High Pressure Range: -14.5 – 800 psi (-0.1 – 5.5 MPa)
• Resolution: 0.5 psi
• Accuracy: +/-0.5% FS
• Measurement Units: MPA, kPa, bar, psi, kg/cm2, inHg
• Temperature Unit: ˚C/˚F
• Over Range Alarm: Display -OL-
• Operating Temperature: -10˚C to 60˚C
• Battery: CR2450
• Battery Life: Approximately 6 months
• Sampling Rate: 1 second
• Low Battery Indication: icon on LCD
• Display: 30 mm x 17 mm LCD
• Blue Backlight: Auto-off after 6 seconds

R1234yf Compact 2-Way Manifold

• Left fitting – 12 mm-F for R1234yf hose with R1234yf low side coupling holder
  Center fitting – 1/2” ACME left hand fitting with 1/2” ACME holder
  Right fitting – 12 mm-F for R1234yf hose with R1234yf high side coupling holder
• Front facing hose holder

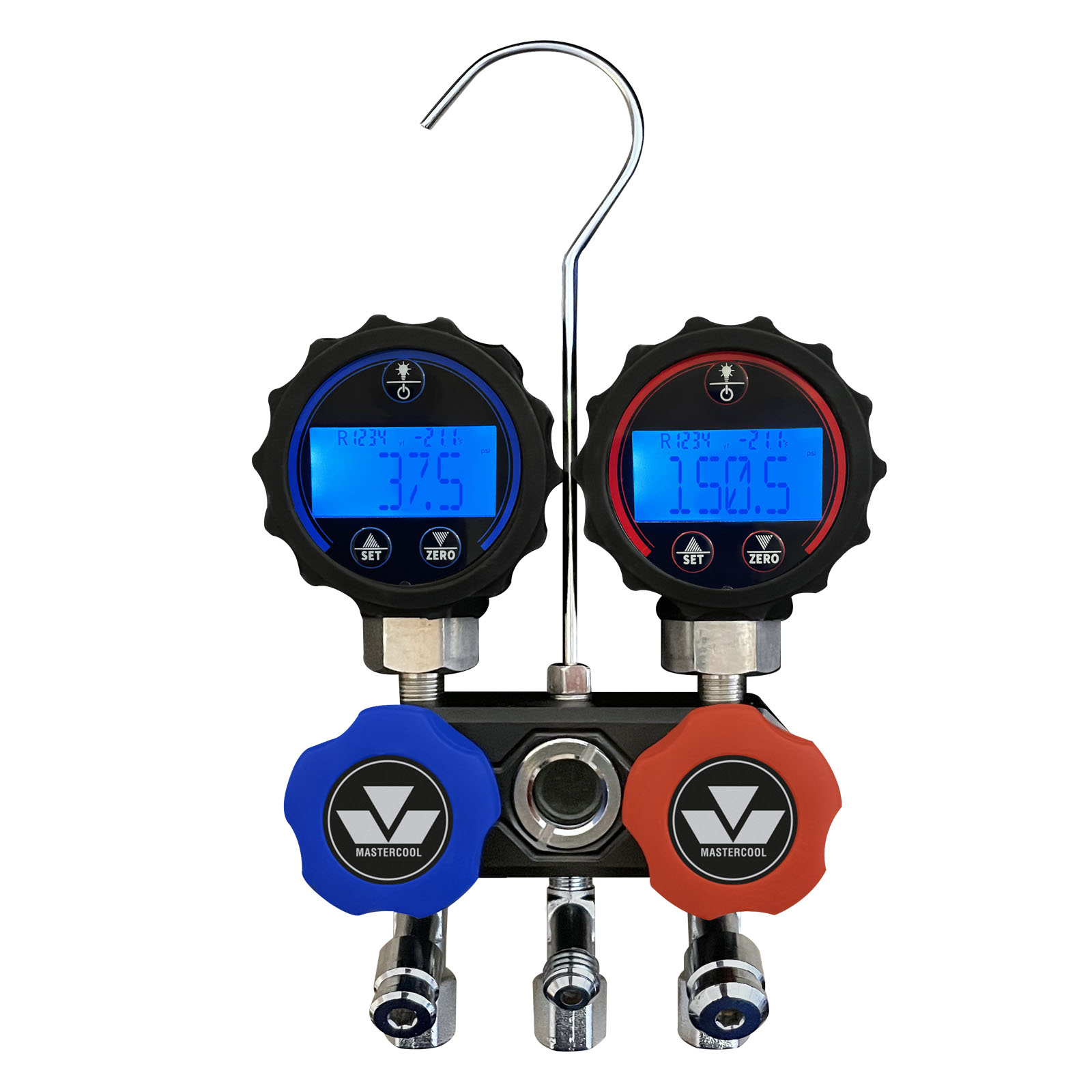

82103: Compact Manifold with gauges only packaged in a cardboard box

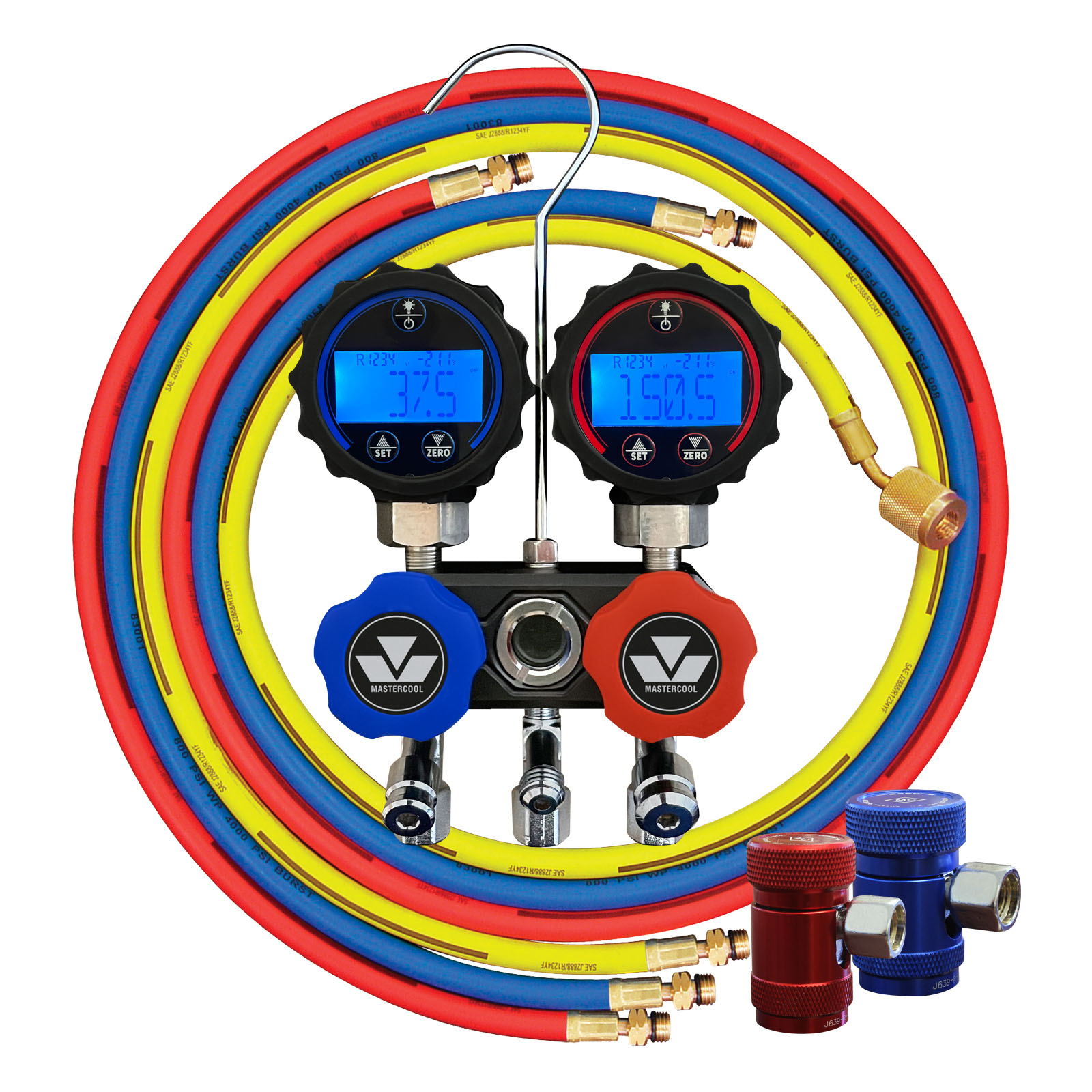

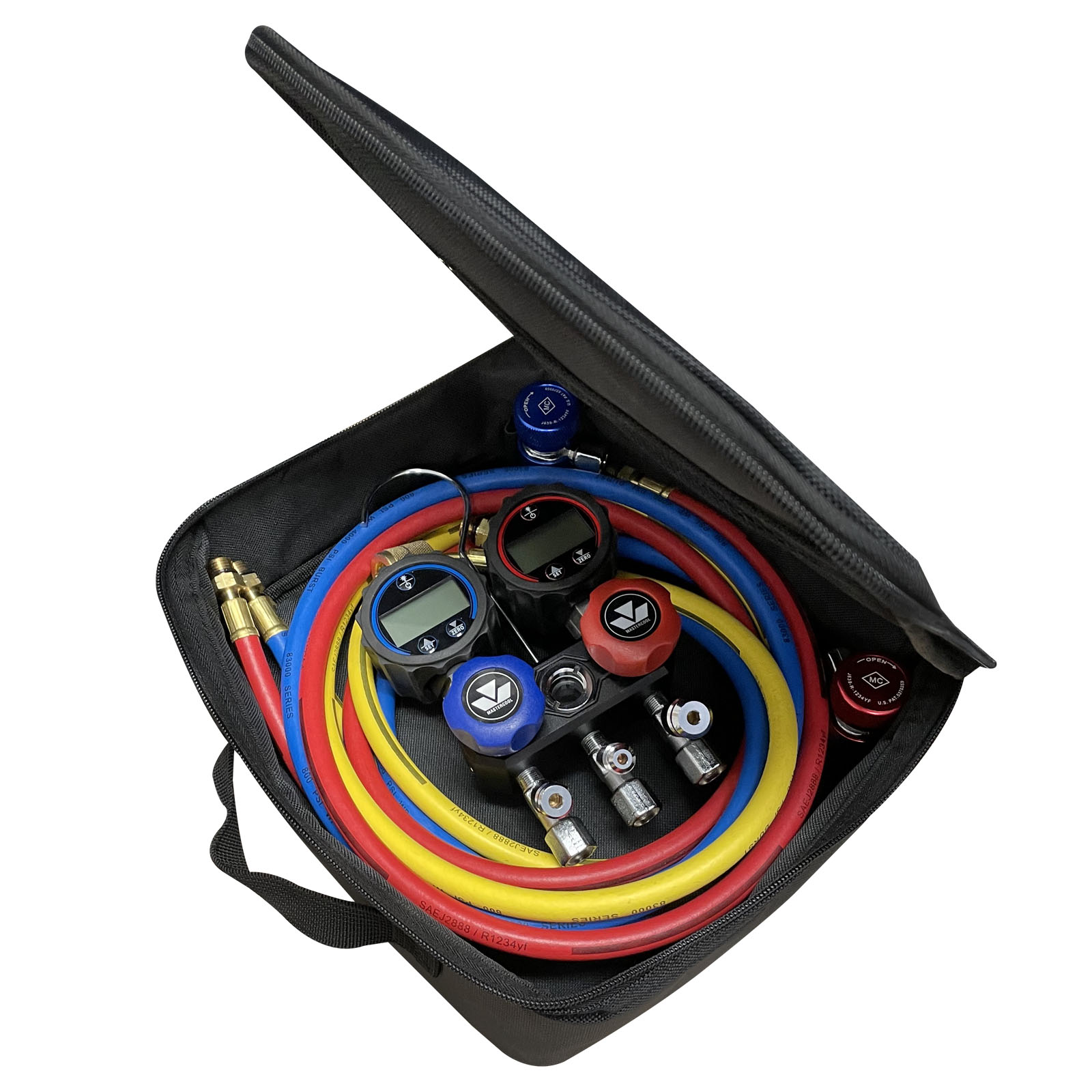

82172: Compact Manifold with 3-72” (182 cm) hoses and R1234yf manual couplers (83834, 83934) packaged in a zippered carry case
