E-Z SNAP™ COUPLERS

Product Description

This unique patented design easily snaps on and off the A/C systems service ports under any pressure. The E-Z Snap™ automatically adjusts to various service port dimensions allowing fast and immediate access into the A/C system. The swivel feature enables the user to easily access all service ports, even in the tightest quarters. Meets SAE, UL, and EPA requirements for containment of refrigerant. Patent# 5,244,010

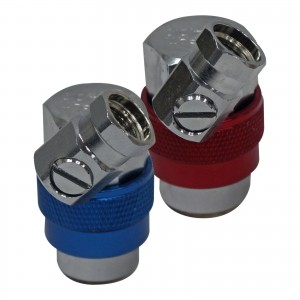

82214: High-Side E-Z Snap R134a 14 mm-F x 16mm Quick Coupler
82224: Low-Side E-Z Snap R134a 14mm-F x 13mm Quick Coupler

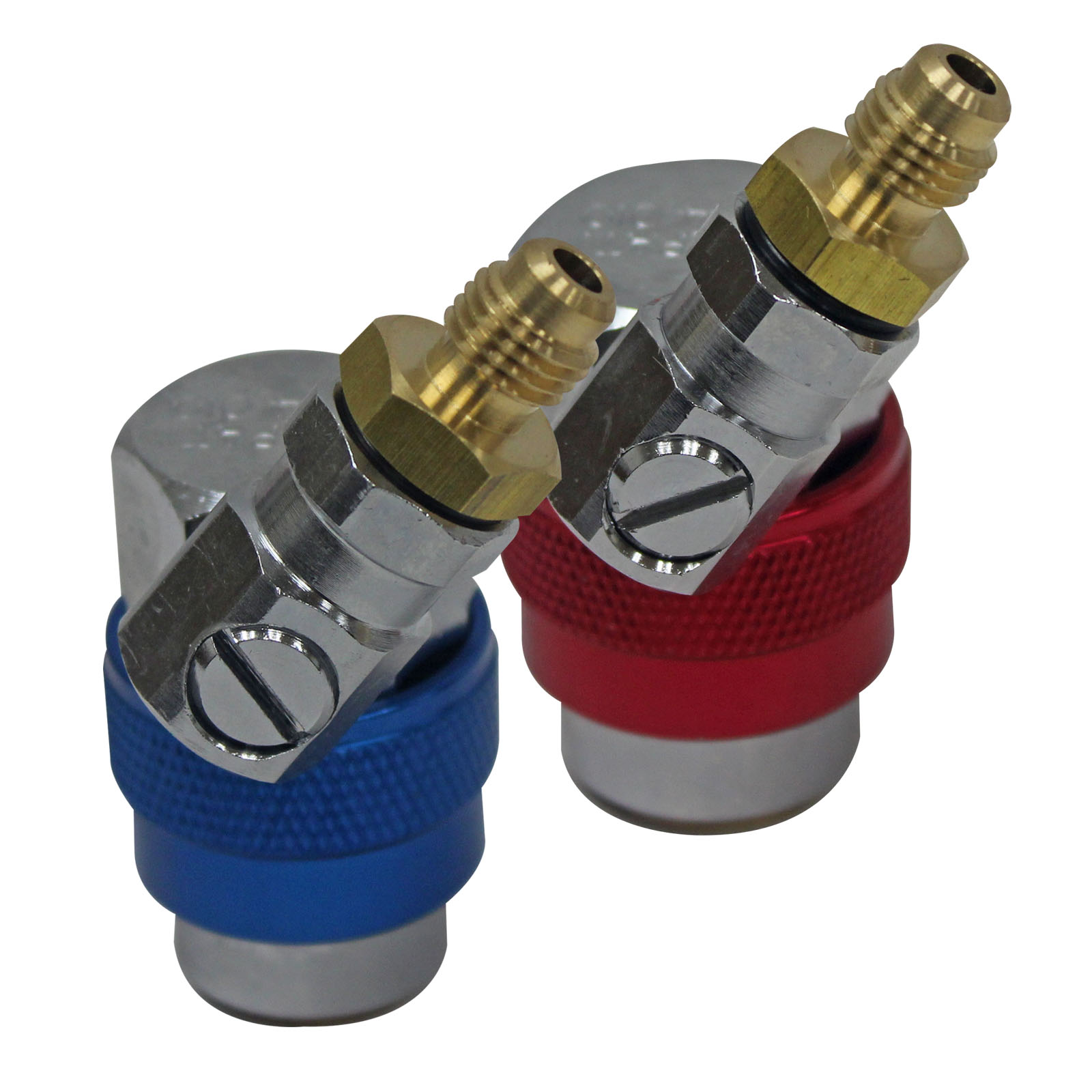

82214-E: High-Side E-Z Snap R134a 1/4” FL-M x 16mm Quick Coupler
82224-E: Low-Side E-Z Snap R134a 1/4” FL-M x 13mm Quick Coupler
82214-3/8: High-Side E-Z Snap R134a 3/8″ FL-M x 16mm Quick Coupler
82224-3/8: Low-Side E-Z Snap R134a 3/8″ FL-M x 13mm Quick Coupler
82214-J: High-Side E-Z Snap R134a M12 x 1.75 x 16mm Quick Coupler
82224-J: Low-Side E-Z Snap R134a M10 x 1.5 x 13mm Quick Coupler
80034: O-Ring for 16mm Quick Coupler
80134: O-Ring for 13mm Quick Coupler
