R410A & R32 2-3-WAY ALUMINUM MANIFOLD 3 1/8″ GAUGE SET

Product Description

• 3 1/8″ Gauges
• 1/4″ MFL
• Exclusive 3/8″ Ball Valve Design
• Full 3/8″ bore all the way through the block increases flow over the standard block designs
• Ball valve rotates 90˚ between two teflon washers requiring little effort to turn, even under pressure
• Opens and closes quickly with only a quarter turn
• Visual knob position quickly indicates if valves are open or closed
• Color coordinated gauges for multi-refrigerant recognition
• Includes three 1/4” SAE nylon barrier hoses with manual ball valves

51203: R410A & R32 2-way 3/8″ ball valve manifold gauge set only

51236: R410A & R32 2-Way 3/8″ ball valve manifold gauge set includes 3 – 36″, 1/4” SAE nylon barrier hoses with manual ball valves packaged in a plastic box

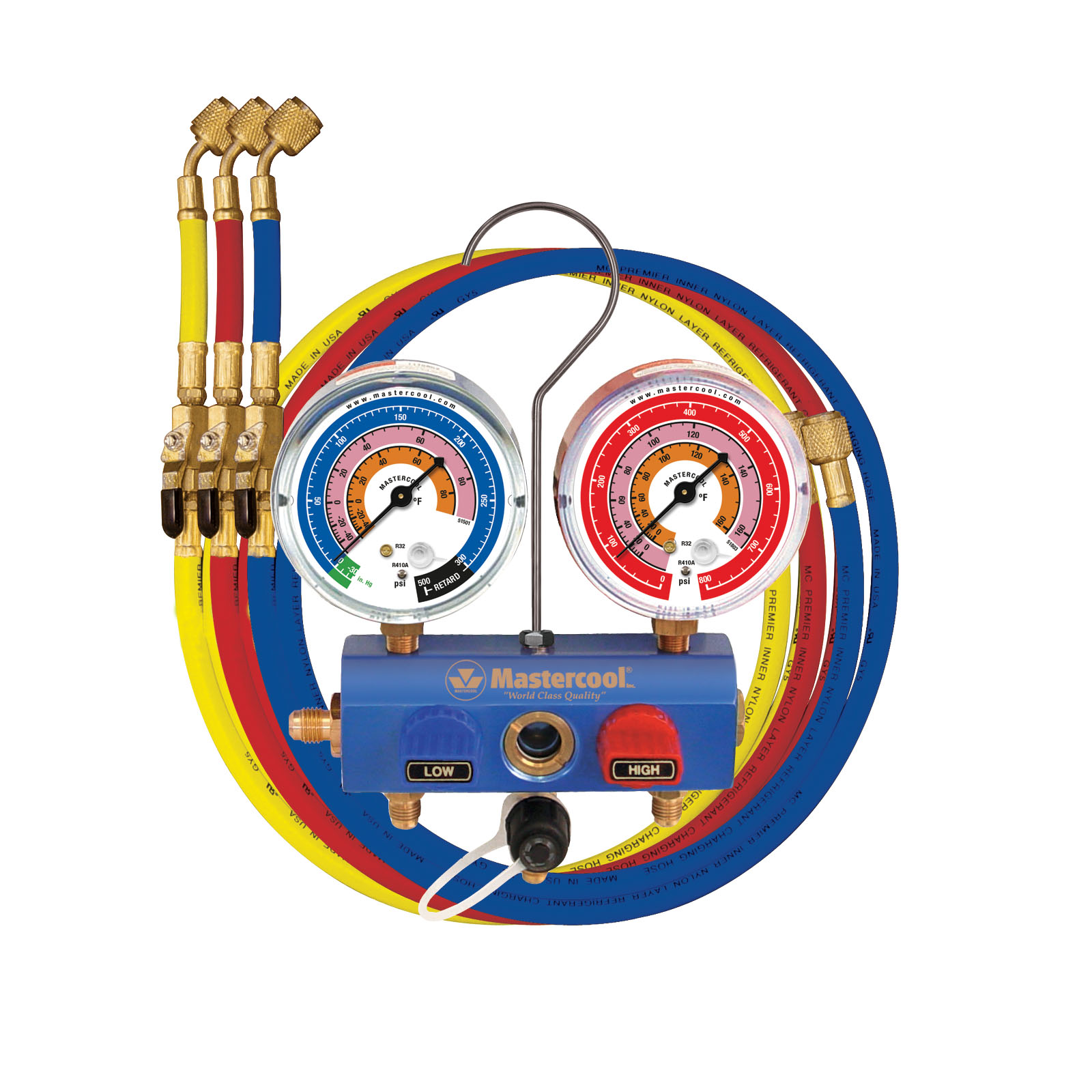

51261: R410A & R32 2-Way 3/8″ ball valve manifold gauge set includes 3 – 60″, 1/4” SAE nylon barrier hoses with manual ball valves packaged in a plastic box

51272: R410A & R32 2-Way 3/8″ ball valve manifold gauge set includes 3 – 72″, 1/4” SAE nylon barrier hoses with manual ball valves packaged in a plastic box

51436: R410A & R32 3-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 36″, 1/4″ SAE nylon barrier hoses with manual ball valves, 1 – 3/8″ SAE vacuum hose and 90˚ swivel vacuum ball valve packaged in a plastic box

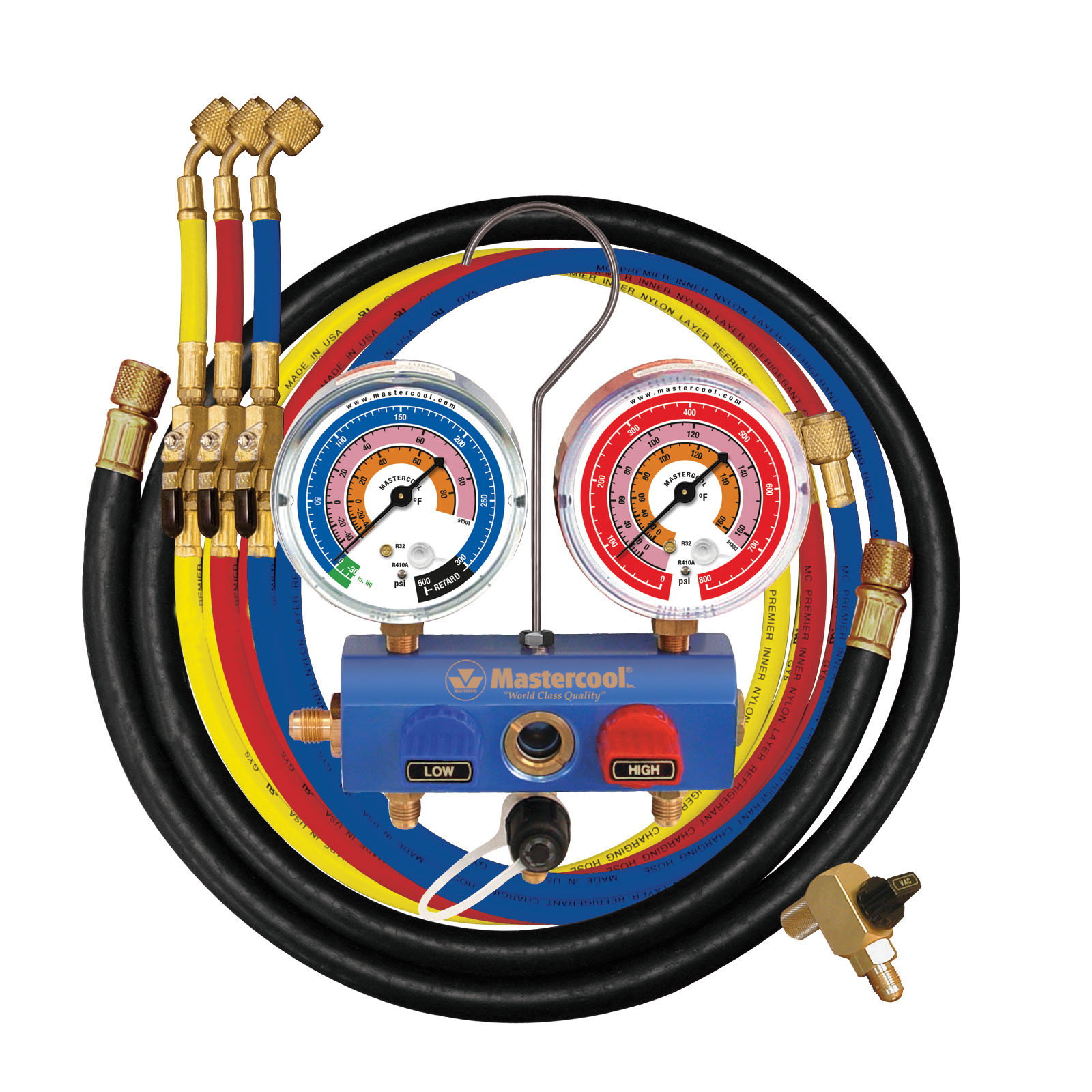

51461: R410A & R32 3-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 60″, 1/4″ SAE nylon barrier hoses with manual ball valves, 1 – 3/8″ SAE vacuum hose and 90˚ swivel vacuum ball valve packaged in a plastic box

51472: R410A & R32 3-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 72″, 1/4″ SAE nylon barrier hoses with manual ball valves, 1 – 3/8″ SAE vacuum hose and 90˚ swivel vacuum ball valve packaged in a plastic box

REPLACEMENT PARTS:
90530: Ball Valve Only (3/8″ FML x 3/8″ FFL 90˚)
98225: Ball Valve Repair Kit
58102-R-KIT: O-Ring repair kit for 2-3-Way Ball Valve Manifold
58102-PBR: Plastic Carrying Case
