THERMOPLASTIC SERVICE HOSE ASSEMBLIES – ¼” SAE FEMALE SWIVEL FITTING

Product Description

  • EN 1736 and ISO 13971 – Class 2
  • Inner Diameter 2 mm
  • Outer Diameter 5.9 mm
  • Tolerances 0.1 mm
  • Bending Radius 10 mm
  • Max Allowable Pressure 60 bar (870 psi)
  • Working Temperature 120˚C
  • Min/Max Allowable Temperature -40 to 130˚C
  • Weight 25 g/m

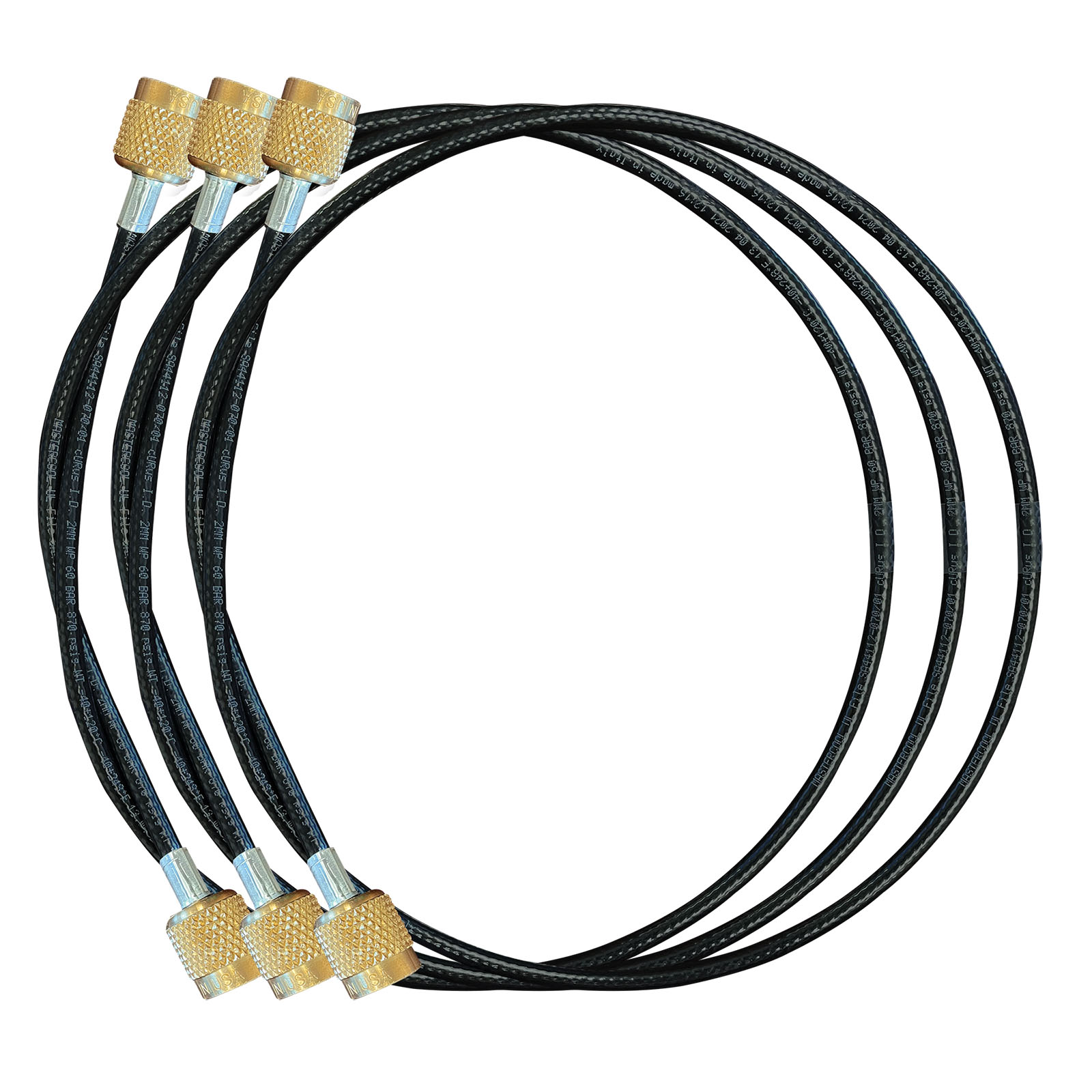

44180-TPC: Set of 3-18” (450 mm) thermoplastic service hoses with 1/4” SAE female swivel fittings

44240-TPC: Set of 3-24” (600 mm) thermoplastic service hoses with 1/4” SAE female swivel fittings

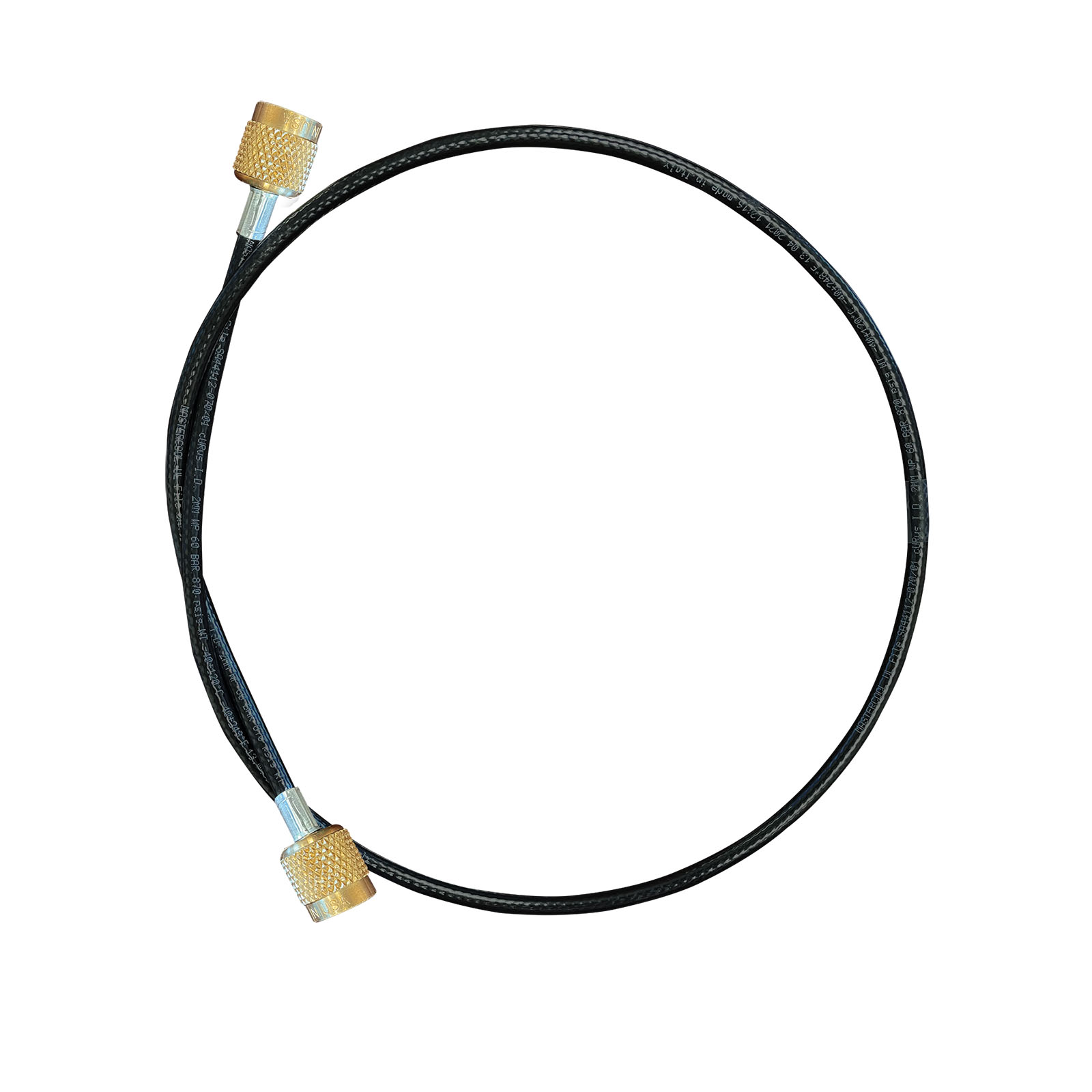

44181-TPC: 18” (450 mm) thermoplastic service hose with 1/4” SAE female swivel fittings

44241-TPC: 24” (600 mm) thermoplastic service hose with 1/4″ SAE female swivel fittings

Available Downloads

PDF_downlaod Flier
