STANDARD AND HIGH PRESSURE HOSES WITH AUTOMATIC SHUT-OFF VALVE FITTINGS (1/4″ SAE)

Product Description

Mastercool uses only (GRADE 5 HOSE) with a selection of Standard and Nylon Barrier for high pressure applications. Knurled brass nuts make finger tightening easy. Crimped with 8 segment dies for secure fit and maximum durability. Hoses are available in sets and a variety of lengths to meet all EPA, SAE, and UL requirements for containment of refrigerant.

• Auto shut-off valves automatically retain refrigerant in the service hose when they are removed from the system, meet EPA, SAE, and UL standards for containment of refrigerant.
• Suitable for A1-A2L and A3 refrigerants

Standard Hoses, Working Pressure 600 PSI, Burst 3000 PSI
45361: 36″ Blue, 1/4″ x 1/4″
45362: 36″ Yellow, 1/4″ x 1/4″
45363: 36″ Red, 1/4″ x 1/4″

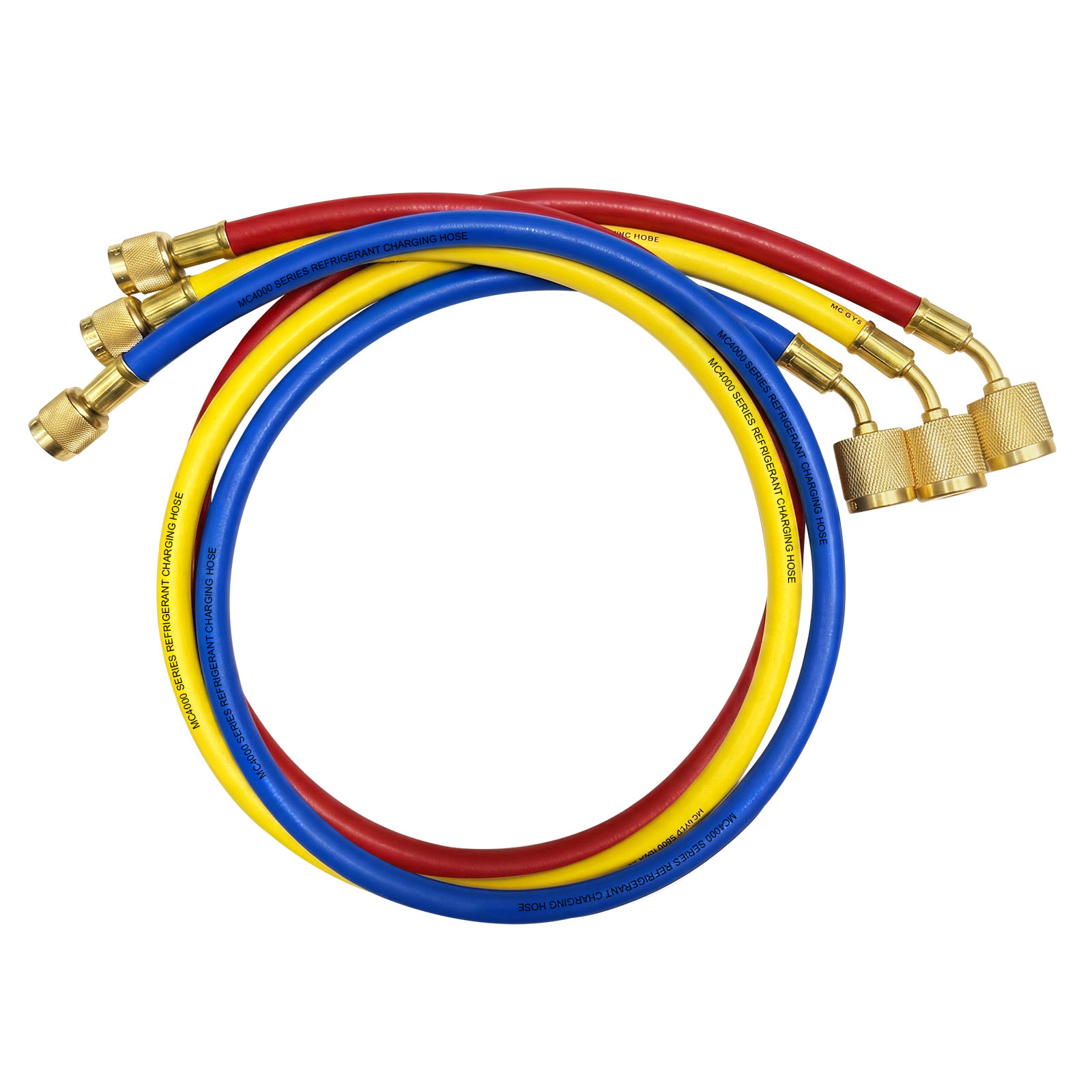

45336: 36″ Set, Red/Blue/Yellow, 1/4″ x 1/4″

45601: 60″ Blue, 1/4″ x 1/4″
45602: 60″ Yellow, 1/4″ x 1/4″
45603: 60″ Red, 1/4″ x 1/4″

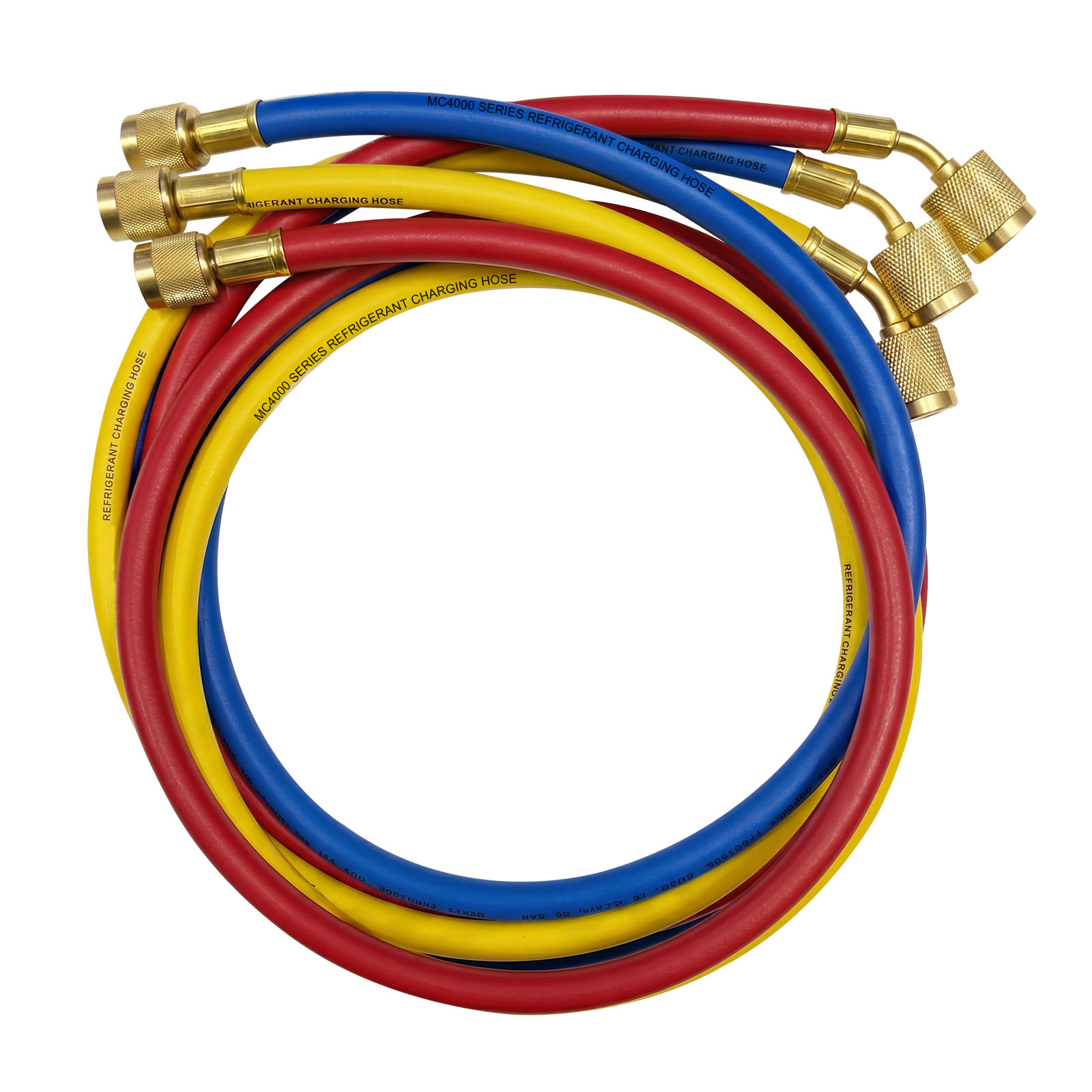

45360: 60″ Set, Red/Blue/Yellow, 1/4″ x 1/4″

45721: 72″ Blue, 1/4″ x 1/4″
45722: 72″ Yellow, 1/4″ x 1/4″
45723: 72″ Red, 1/4″ x 1/4″
45372: 72″ Set, Red/Blue/Yellow, 1/4″ x 1/4″

45961: 96″ Blue, 1/4″ x 1/4″
45962: 96″ Yellow, 1/4″ x 1/4″
45963: 96″ Red, 1/4″ x 1/4″
45396: 96″ Set, Red/Blue/Yellow, 1/4″ x 1/4″

Nylon Barrier Hoses, Working Pressure 800 PSI, Burst 4000 PSI
46361: 36″ Blue, 1/4″ x 1/4″
46362: 36″ Yellow, 1/4″ x 1/4″
46363: 36″ Red, 1/4″ x 1/4″
46364: 36″ Black, 1/4″ x 1/4″

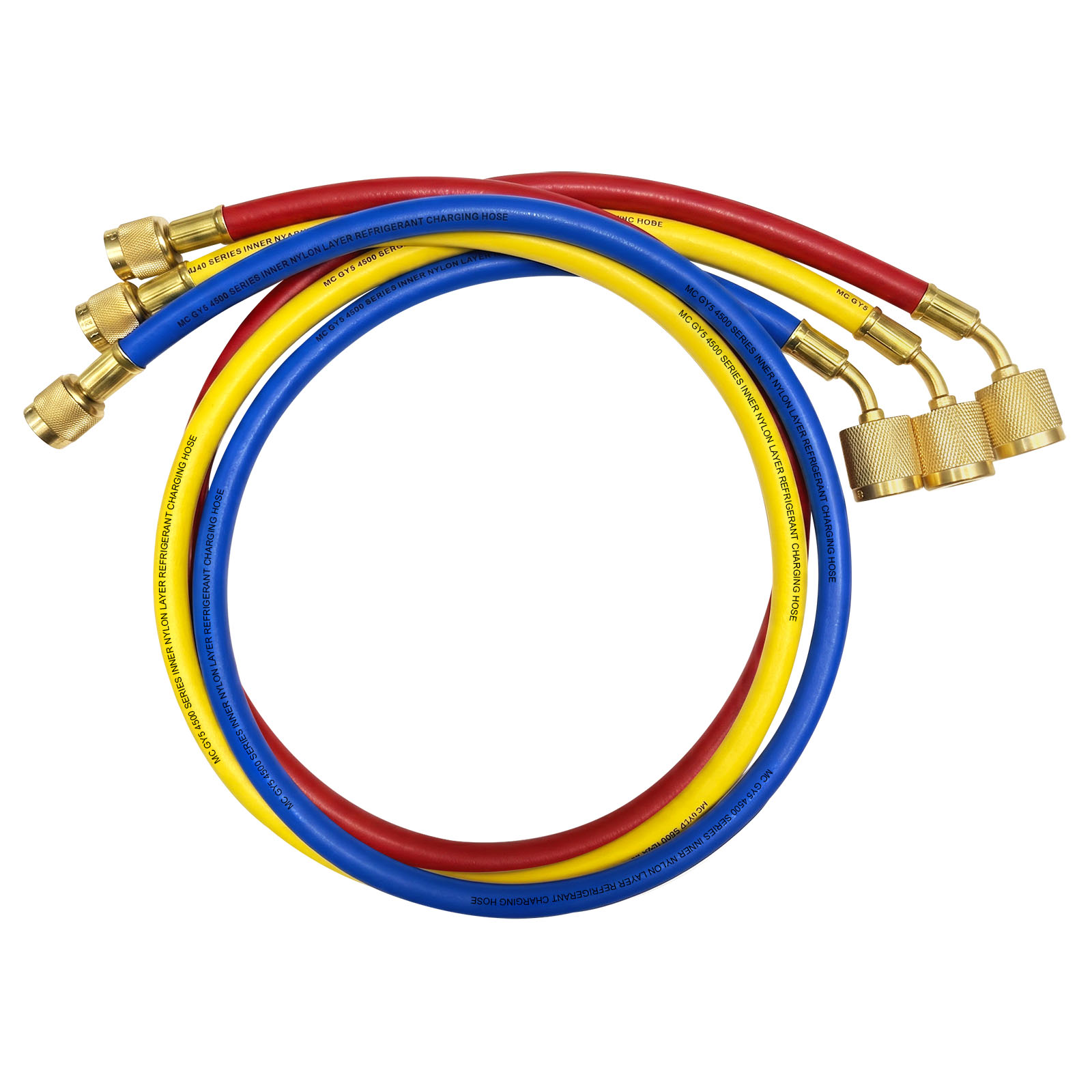

46336: 36″ Set, Red/Blue/Yellow, 1/4″ x 1/4″

46601: 60″ Blue, 1/4″ x 1/4″
46602: 60″ Yellow, 1/4″ x 1/4″
46603: 60″ Red, 1/4″ x 1/4″
46604: 60″ Black, 1/4″ x 1/4″

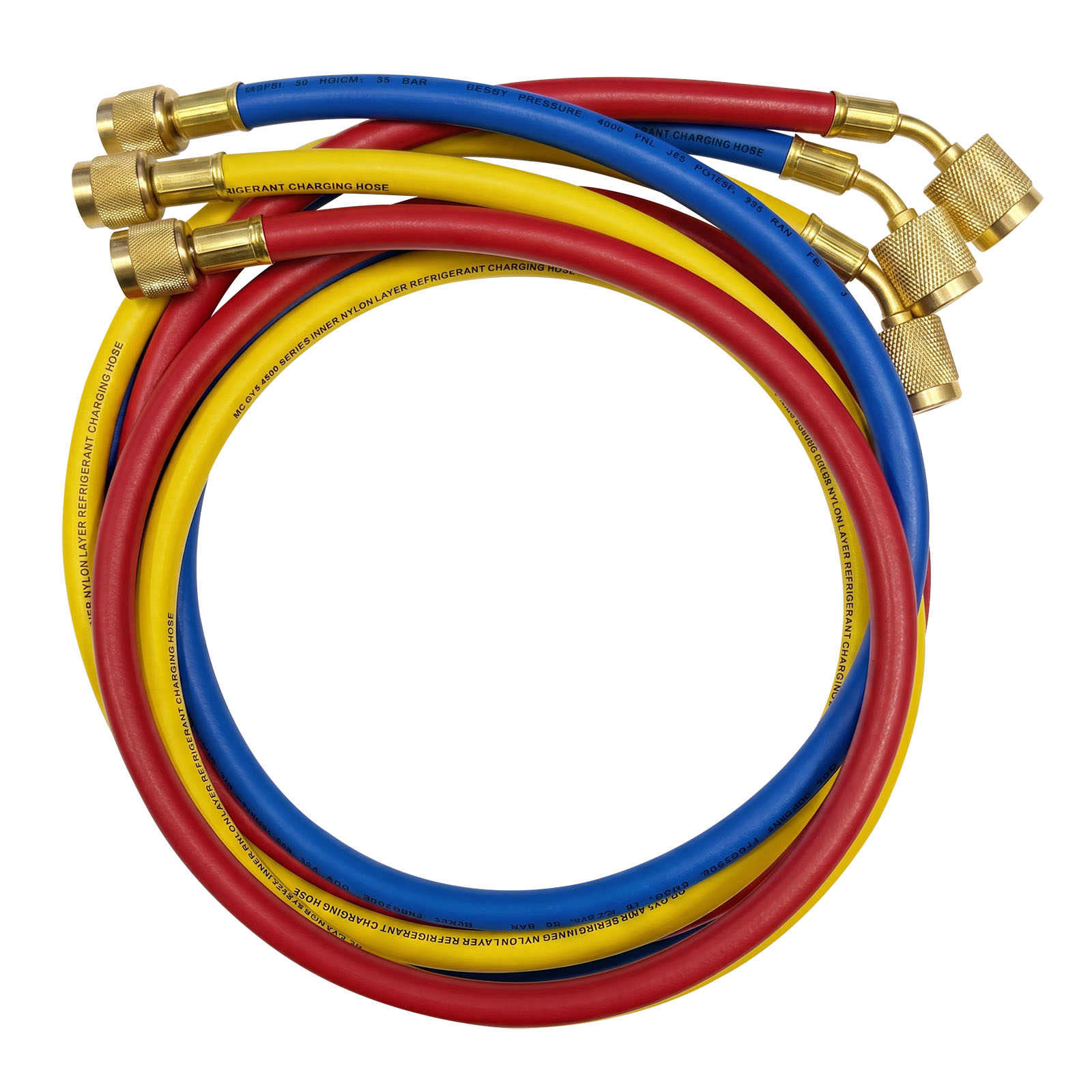

46360: 60″ Set, Red/Blue/Yellow, 1/4″ x 1/4″

46721: 72″ Blue, 1/4″ x 1/4″
46722: 72″ Yellow, 1/4″ x 1/4″
46723: 72″ Red, 1/4″ x 1/4″
46724: 72″ Black, 1/4″ x 1/4″
46372: 72″ Set, Red/Blue/Yellow, 1/4″ x 1/4″

46961: 96″ Blue, 1/4″ x 1/4″
46962: 96″ Yellow, 1/4″ x 1/4″
46963: 96″ Red, 1/4″ x 1/4″
46964: 96″ Black, 1/4″ x 1/4″
46396: 96″ Set, Red/Blue/Yellow, 1/4″ x 1/4″
